Range Errors

A range error occurs when one individual part exceeds the range normally given to that part. For example, A bass vocalist is not likely going to be able to sing something above the treble clef.

Example

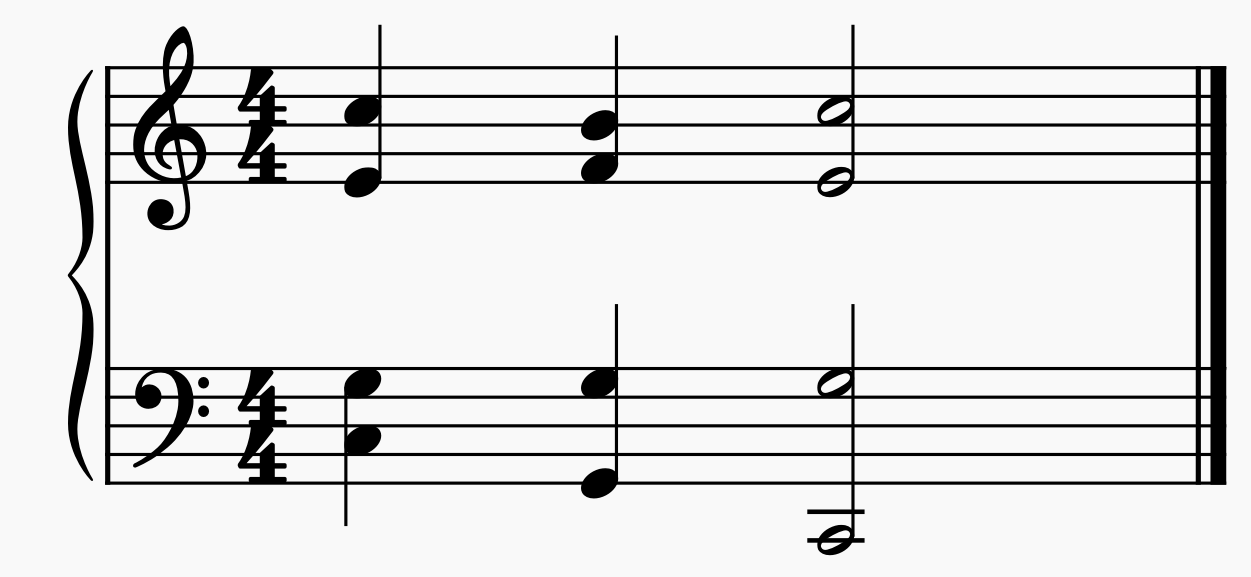

Range Error Example

In the example above, the last note of the bass part is lower than the standard range for bass partwriting.

Default Configuration

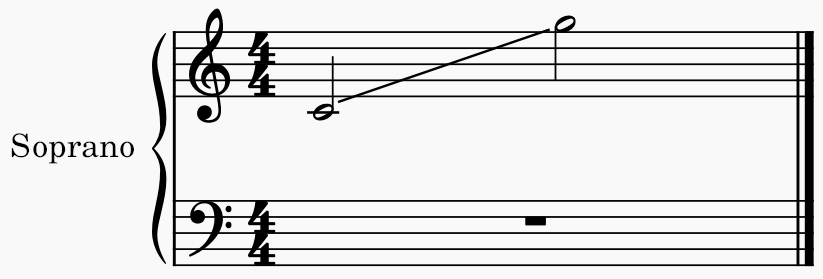

Soprano: C4 to G5
Soprano Range

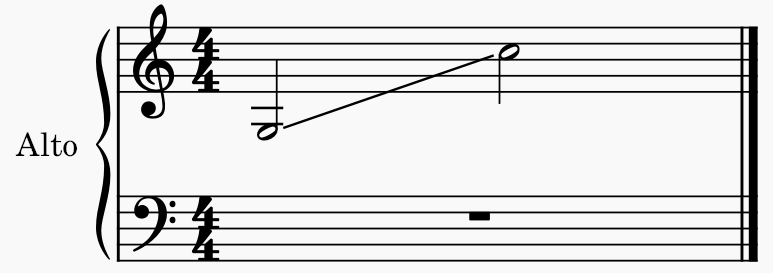

Alto: G3 to C5
Alto Range

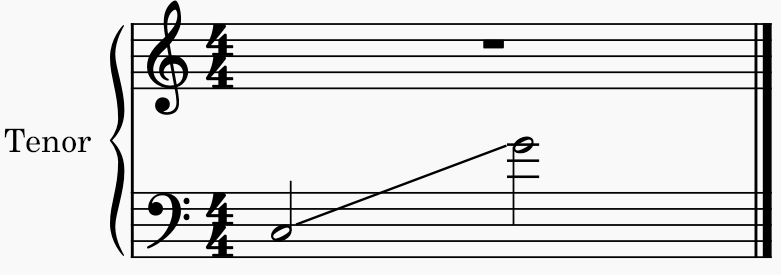

Tenor: C3 to G4
Tenor Range

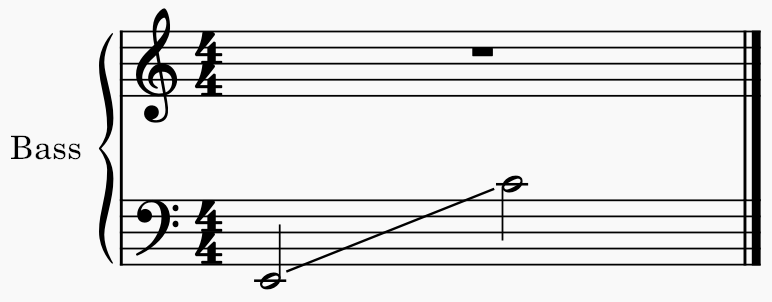

Bass: E2 to C4
Bass Range

Changing the Configuration

Updating the configuration for range errors requires editing the source code to indicate the new ranges. Changing any of the numerical values in this code block will update the range for that specific voice. This is all done where 60 represents C4.

// Allowed Part Range Configurations
property int sopranoHighestNote  :   79      // G5
property int sopranoLowestNote   :   60      // C4
property int altoHighestNote     :   72      // C5
property int altoLowestNote      :   55      // G3
property int tenorHighestNote    :   67      // G4
property int tenorLowestNote     :   48      // C3
property int bassHighestNote     :   60      // C4
property int bassLowestNote      :   40      // E2

Example:
To change the range for the lowest bass note to C2, change the line
property int bassLowestNote : 40 // E2
to
property int bassLowestNote : 36 // C2
